What are the Inspection Contents of Shaft Forgings ?

Quality inspection of shaft forgings is divided into appearance quality inspection and internal quality inspection.

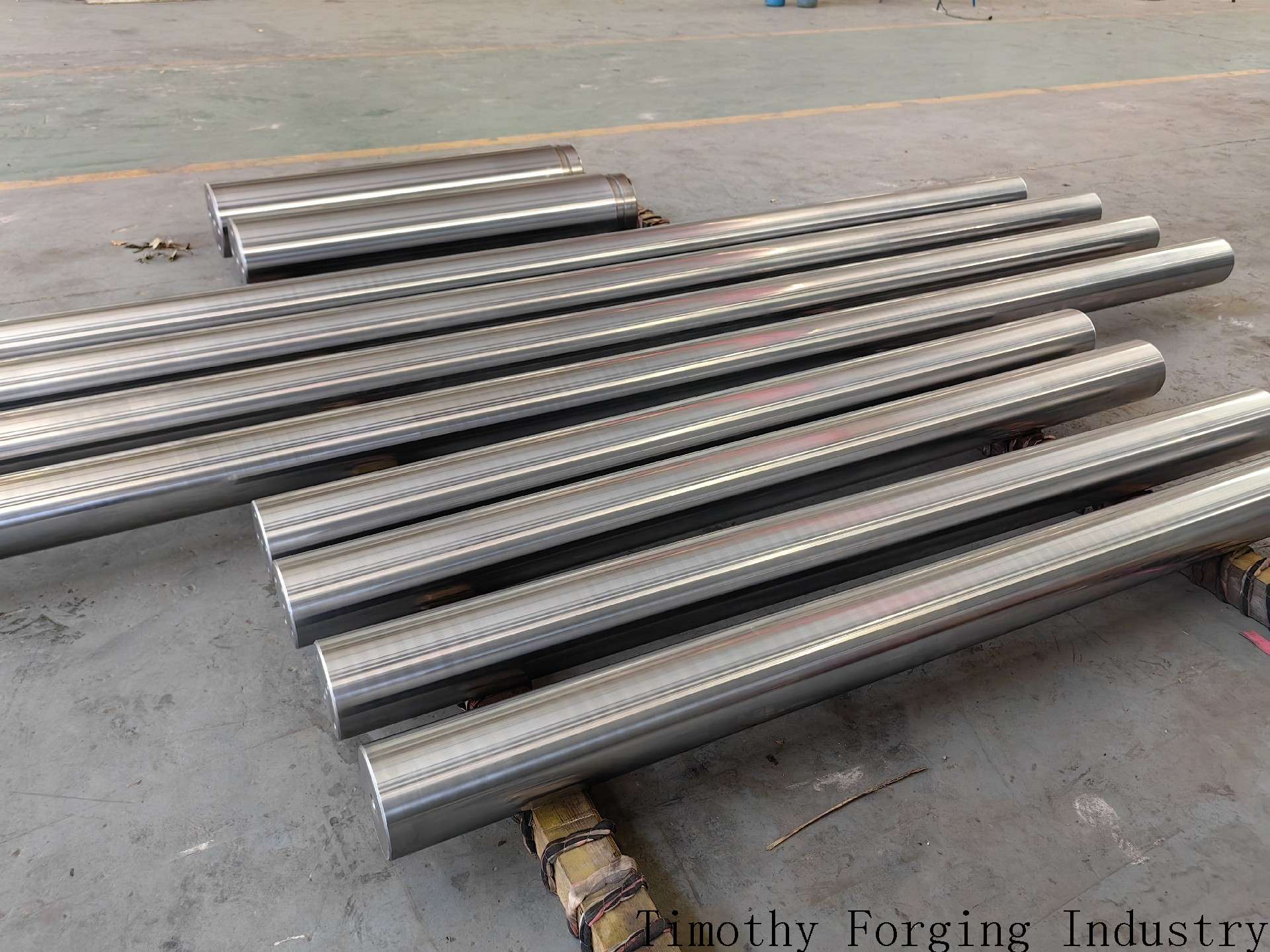

Appearance Quality Inspection

The appearance inspection of shaft forgings mainly involves checking for surface defects and dimensional accuracy. The following are common methods for appearance inspection of shaft forgings:

Surface Defect Inspection

Crack Inspection: Use methods such as visual inspection, fluorescent inspection, or ultrasonic testing to detect cracks.

Bubble and Inclusion Inspection: Employ visual inspection or magnetic particle testing to find bubbles and inclusions.

Uniformity Inspection: Check the surface uniformity to ensure there are no obvious uneven or abnormal areas.

Dimensional Measurement

Diameter and Length Measurement: Use appropriate measuring tools (e.g., vernier calipers) to measure the diameter and length of shaft forgings, ensuring they meet the specified dimensional requirements.

Roundness and Straightness Inspection: Utilize measuring instruments to test the roundness and straightness of shaft forgings, ensuring their shape is within the allowable tolerance range.

Visual Inspection

General Appearance Check: Visually inspect the appearance of forged shafts to ensure the surface is smooth, with no obvious wear, scratches, or other damages.

Marking Inspection: Examine the markings on shaft forgings to ensure they are accurate and clear.

Heat Treatment Effect Inspection

Color Inspection: For heat-treated shaft forgings, check the color change to ensure compliance with heat treatment requirements.

Surface Protective Layer Inspection

Coating Inspection: If the surface of the shaft forging has a coating or paint, check the uniformity and adhesion of the coating.

Forming Inspection

Shaft Straightness Inspection: Ensure the straightness of the shaft is within an acceptable range.

End Parallelism Inspection: Check the parallelism of the shaft's end faces to meet the specified requirements.

The above inspection methods are usually used in combination to ensure comprehensive inspection of the appearance quality of shaft forgings. It should be noted that specific inspection methods may vary depending on the material, manufacturing process, and specification requirements.

Internal Quality Inspection

The internal quality inspection of shaft forgings mainly focuses on testing their internal structure and performance to ensure there are no hidden defects or issues during use. The following are common internal quality inspection methods for shaft forgings:

Ultrasonic Testing

Crack Detection: Use ultrasonic equipment to scan shaft forgings and detect potential cracks.

Inclusion Detection: Ultrasonic testing can also be used to identify internal inclusions or bubbles that may affect the strength and durability of shaft forgings.

X-ray Testing

Internal Structure Inspection: X-ray inspection is used to examine the internal structure of shaft forgings and identify potential defects such as bubbles, inclusions, or uneven tissue structure.

Magnetic Particle Testing

Crack Detection: Apply magnetic powder to the surface of the shaft forging, apply a magnetic field, and observe the distribution of the magnetic powder to detect cracks below the surface.

Hardness Testing

Hardness Distribution Detection: Use hardness testing instruments to measure the shaft forgings, determine the hardness distribution, and evaluate their strength and durability.

Metallographic Analysis

Metallographic Microscope Inspection: Prepare metallographic sections of the shaft forgings and observe their metal structure under a microscope to evaluate performance indicators such as grain size and phase content.

Magnetic Particle Detection

Magnetic Particle Inspection: Magnetize the shaft forgings and use magnetic powder to detect potential surface and near-surface cracks.

Heat Treatment Effect Inspection

Metallographic Structure Analysis: Conduct metallographic structure analysis on heat-treated shaft forgings to ensure the heat treatment achieves the expected effect.

These internal quality inspection methods are usually carried out at different stages of the manufacturing process to ensure the internal quality of shaft forgings meets the specified standards and requirements. Specific inspection methods may vary depending on the material, process, and product application.
